Does your Austin jump out of Gear?

With many thanks to the Cornwall A7C)

Overhauling of the gear selectors of a 4 speed box.

If your gearbox jumps out of gear you need to change the balls and springs in the selector forks. Having removed the box from the car, it needs to be secured in a frame to hold it upright and accessible from both ends and top.

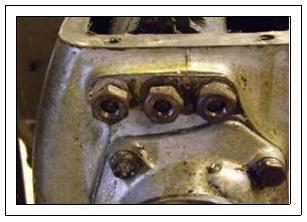

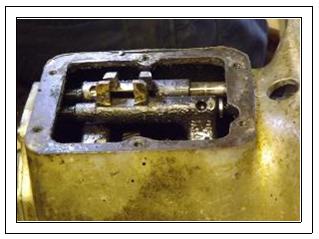

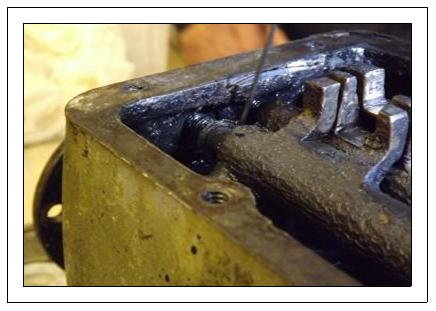

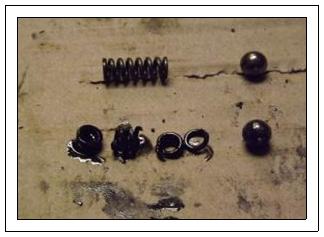

First step is to remove the cover and gear change gate assembly. With your fingers try moving each fork. If the spring is worn the ball will not lock the fork in the neutral or meshed position . The first step to removing the selector bars is to remove the nuts and locking plate at the back of the box. Next step is to drive out the selector bar with a drift. Care must taken not to lose the shims on the back of this shaft. As you remove the bar from the fork, catch the ball with a small magnet. This can be passed through from the back of the box as the bar is removed. Here you can see the hole in the fork for the ball and spring. Make certain you remove all of the spring if they have broken. See below - the picture shows old and new Springs and balls. Clean all parts prior to re-assembly with new balls and springs.

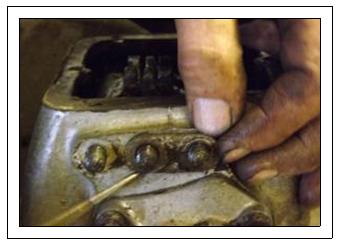

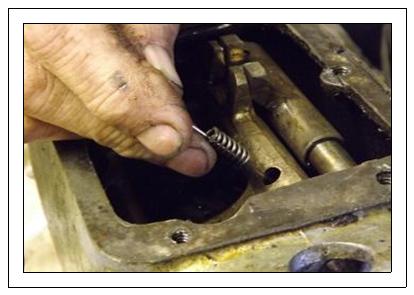

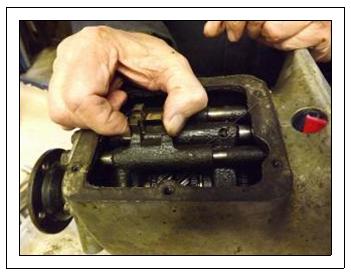

Start re-assembly with the reverse fork. Make sure that the fork slots into the groove on the gear. As you slide the selector bar into the fork replace the new spring and ball into the hole in the fork. Hold the ball in position with the magnet until the threaded part of the bar is past the ball, then compress the ball and spring as the bar is driven through. As this is very fiddly a spare of hands will help! Screw the bar home but do not tighten as it will need adjusting later. Follow this with the 3rd -4th fork and bar then the 1st -2nd fork and bar. Make sure that the flat on the bar lines up with the locking plate. Then replace the locknuts.

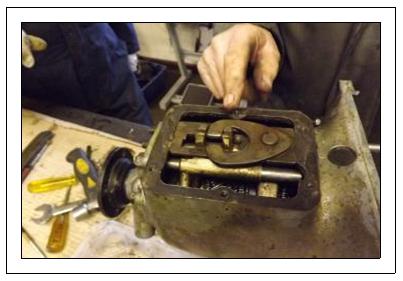

Tighten the nut on the 1st-2nd bar. Then replace the gear change assembly. The other two bars may need some adjustment to get all three gates inline so the horseshoe shaped plate moves freely side to side . When this is done tighten the other two locknuts. You can now refit the top cover. The box is now ready to be refitted .

Chris Gill CA7C with many thanks
